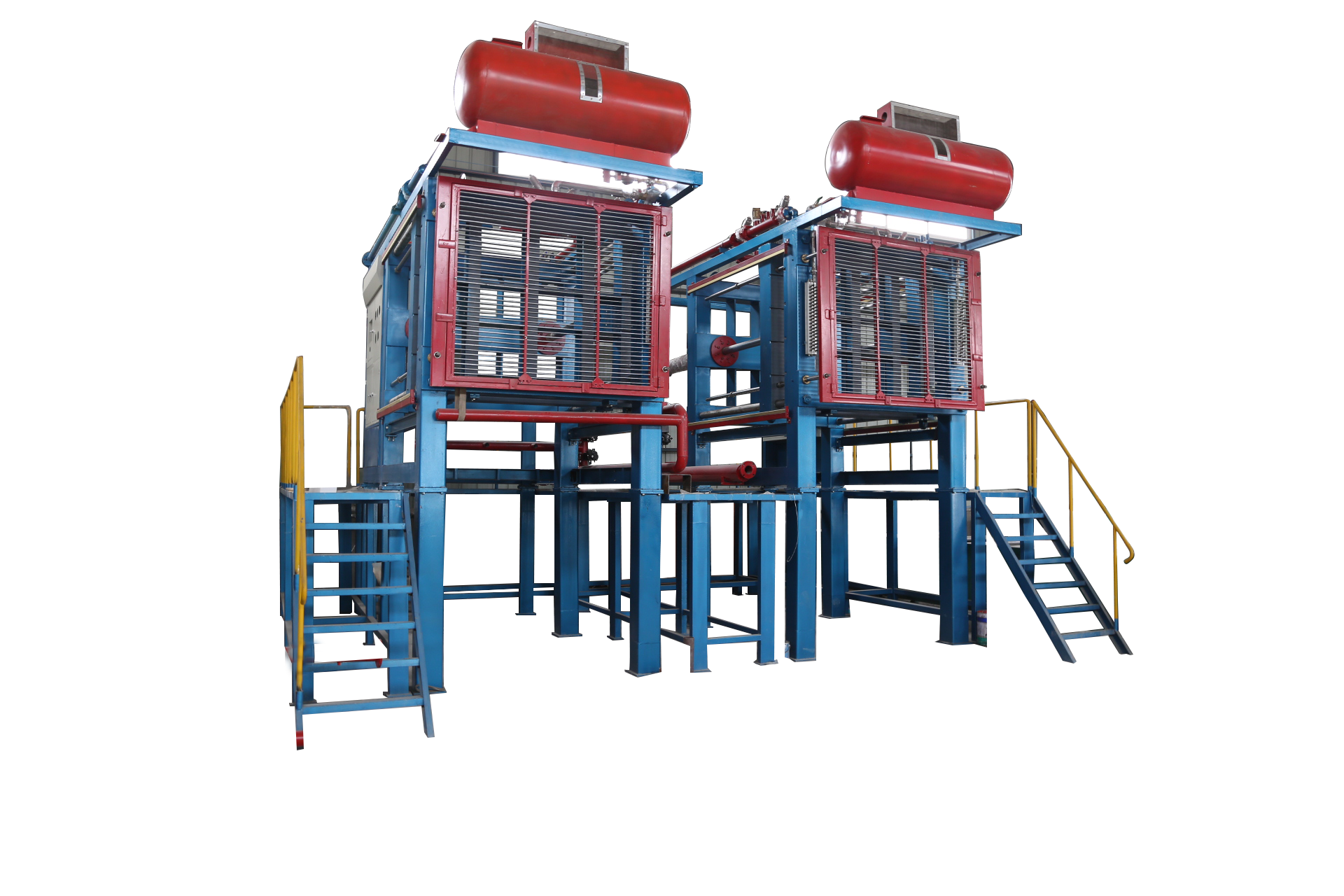

Automatic EPS Shape Moulding Machine

Date：2019-11-28 16:59:45 / Hit：16777215

EPS Shape Moulding Machine main features:

1.This machine adopts PLC programmable controller and touching screen to carry out automaticproduction from

feeding, temperature control, ration pressurizing and feeding.

2.Top-grade sealing foaming with constant pressure, high thermal efficiency, save 50% steam orabove than

continuous foaming machine

3.Adopt high-precision imported pneumatic control valve so that temperature can be controlled at ±1%,EPS grains

are at same level with low moisture content.

4. Correct feeding method can assure even density

5. Use closed expansion chamber and pressure sensor control technology to realize stable foaming pressure.

6. Expansion chamber temperature is controlled by temperature sensor and valve position ensuring accurate

temperature control.

7. Vibrating switch control material level to get accurate density, density tolerance less than ±2%.

8. Stainless steel fluidized bed drier keeps inside temperature around 70 ℃.

EPS Shape Moulding Machine main technical parameters

Item/type	Unit	PSZ-1200	PSZ-1400	PSZ-1600	PSZ-1800	PSZ-2000
Dimension of standard mold	mm	1200×1000	1400×1200	1600×1350	1800×1600	2000×1800
Dimension of finished product	mm	1050×850 ×350	1220×1050 ×350	1420×1200 ×350	1610×1400 ×350	1850×1650 ×350
Max mold opening	mm	1300	1300	1300	1300	1300
Inlet of steam	mm	65	65	65	65	65
Cooling water pressure	mm	65	65	65	65	65
Compressed air inlet	mm	80	80	80	80	80
Steam pressure	MPa	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7
Air pressure	MPa	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5
Cooling water pressure	MPa	0.5-0.6	0.5-0.6	0.5-0.6	0.5-0.6	0.5-0.6
Fluid drive pressure	Kw	5.5	5.5	7.5	7.5	7.5
Power of vaccum pump	Kw	4	4	5.5	5.5	5.5
Inspiratory capacity of vacuum pump	m3/h	165	165	230	230	230
Overall dimension	mm	3600×1700 ×3000	4600×2000 ×3100	4600×2200 ×3200	4600×2400 ×3400	5000×2600 ×3600
Weight	kg	4300	4800	5200	6200	6500
